ST1501 Features

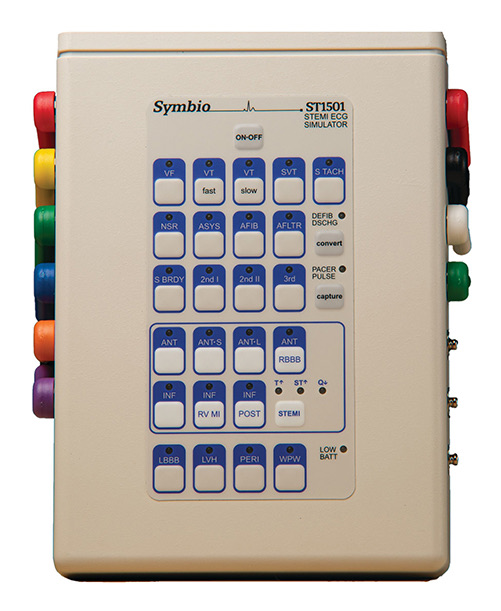

The ST1501 STEMI ECG Simulator is an easy to use training tool for learning to recognize STEMI, imposter and core ACLS waveforms, as well as for practicing defibrillation and external pacing.

Right Ventricular STEMI

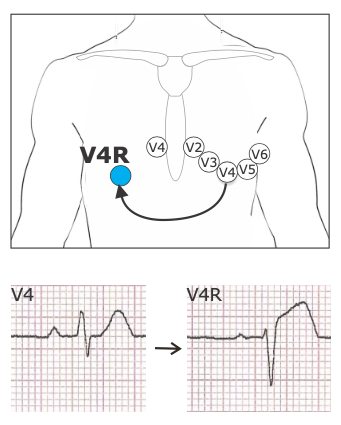

Standard chest electrode placements, V1 - V6, do not look directly at the right ventricle. When a right ventricular STEMI is suspected, guidelines recommend relocating the V4 lead to V4R. The ST1501 includes an ECG snap, V4R, to simulate a direct view of the right ventricle.

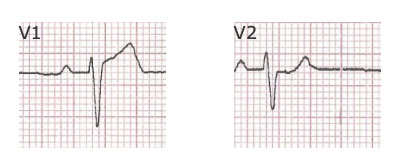

ST elevation in V1 and ST depression in V2 may indicate right ventricular STEMI. action: Move V4 lead to V4R
ST elevation in V4R confirms right ventricular STEMI.

Posterior STEMI

Standard chest electrode placements, V1 - V6, do not look directly at the posterior ventricle. When a posterior STEMI is suspected, guidelines recommend relocating the V5 and V6 leads to V8 and V9. The ST1501 includes two ECG snaps, V8 and V9, to simulate a direct view of the posterior ventricle.

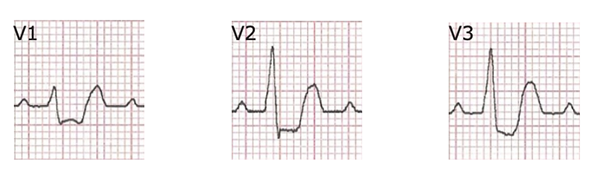

Horizontal ST depression in V1 - V3 may indicate posterior STEMI. action: Move V5 and V6 leads to V8 and V9
ST elevations in V8 and V9 confirm posterior STEMI.

STEMI Progression

Changes in T waves, ST segments and Q waves occur during the minutes and hours after an occlusion. Understanding the evolution of a STEMI is essential for correct diagnosis and treatment. The ST1501 presents each of its seven STEMIs in three phases of progression.

Hyperacute (T↑)
T waves are broad, peaked (seconds after occlusion)
Acute (ST↑)
ST waves are elevated (minutes to hours after occlusion)
Post-acute (Q↓)
Q waves deepen (less than 24 hours after occlusion)

STEMI Imposters

Changes to T waves and ST segments aren't always an indication of STEMI. The ST1501 presents four common imposters that resemble STEMI's, but aren't.

Left Bundle Branch Block
ST elevation and positive T waves in V1 and V2
Left Ventricular Hypertrophy
ST elevation in V1 - V3
Concave ST elevation and PR depression in leads I and II
Prominent R waves and inverted T waves in V1 - V3

ECG Waveforms

Core ACLS waveforms (13)

  • Ventricular Fibrillation
  • Ventricular Tachycardia - fast with wide QRS
  • Ventricular Tachycardia - slow with wide QRS
  • Supra Ventricular Tachycardia
  • Sinus Tachycardia
  • Atrial Fibrillation with rapid varying ventricular response
  • Atrial Flutter with 2:1 AV block
  • Normal Sinus Rhythm
  • Asystole
  • Sinus Bradycardia
  • 2nd degree AV block type I
  • 2nd degree AV block type II
  • 3rd degree AV block

STEMIs (7)

  • (Three versions of each: T↑, ST↑, Q↓)
  • Anterior
  • Anteroseptal
  • Anterolateral
  • Anterior with RBBB
  • Inferior
  • Inferior with RV MI
  • Inferior with Posterior MI

STEMI Imposters (4)

  • Left Bundle Branch Block
  • Left Ventricular Hypertrophy
  • Pericarditis
  • Wolff-Parkinson-White

ECG Connections

  • V1 - V6
  • V4R, V8, V9
  • RA, LA, LL, RL
  • Pads

Defibrillator and Pacer Training

Safely discharge your defibrillator/external pacer directly into the ST1501 for interactive cardiac emergency training.

Defibrillator Discharge

The simulator detects defib discharges of 50J or greater. The DEFIB DSCHG indicator illuminates when defib detection occurs.


After you activate convert, the waiting rhythm that you pre-select automatically becomes the running rhythm when a defibrillator discharge is detected.

Pacing Capture Current

You can select five pacing capture current levels: 70, 80, 90 and 100 mA, and "ignore".

Paced Beats

When a pacer pulse is detected, paced beats are displayed on your ECG monitor and the PACER PULSE indicator blinks off momentarily.


Powered by four AA alkaline batteries. Low battery indicator illuminates when battery needs to be replaced. Battery saver feature powers-off the simulator automatically when not in use. Battery life is approximately 13 hours.

For further information about the functions of the simulator, you can view the operating instructions: ST1501 Operating Instructions [pdf]

ST1501 Order Numbers

The order number you select depends on the manufacturer of the defibrillator you will be using.

If the Defib Manufacturer is: Then select this Order Number:
ZOLL 9915-000
Physio-Control 9915-001
Philips 9915-008
RDT / Tempus LS 9915-018
Welch Allyn 9915-017
MRL 9915-017
Marquette 9915-002
