CS1201 Features
ECG Waveforms
Core ACLS waveforms (14)
- Ventricular Fibrillation
- Ventricular Tachycardia - fast with wide QRS
- Ventricular Tachycardia - slow with wide QRS
- Torsades de Pointes
- Atrial fibrillation with rapid varying ventricular response
- Aflutter with 2:1 AV block
- Paroxysmal Supraventricular Tachycardia
- Sinus Tachycardia with anterior ST depression
- Normal Sinus Rhythm
- Asystole
- 1st degree AV block with RBBB
- 2nd degree type II AV block (4:3)
- 2nd degree type II AV block with LBBB and PVCs (4:3)
- 3rd degree AV block

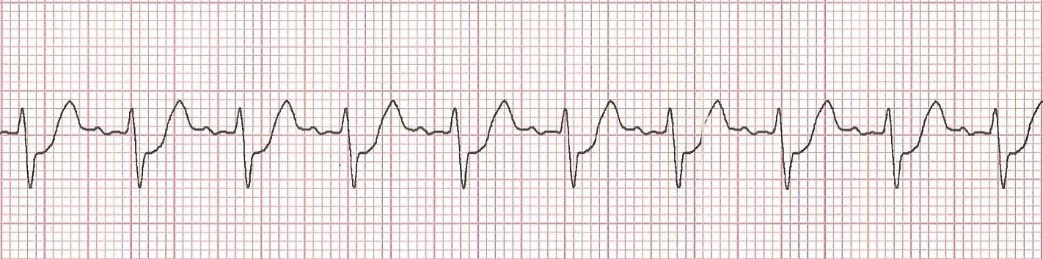

ST segment and T wave Abnormalities (6)
- Sinus rhythm with anterior Q waves
- Sinus rhythm with anterior Q waves and PVCs
- Sinus rhythm with anteroseptal ST elevation
- 2nd degree type I AV block with lateral ST elevation
- Sinus Bradycardia with inferior ST elevation
- Sinus Bradycardia with inferior ST elevation and Q waves
ECG Connections
- V1 - V6
- RA, LA, LL, RL
- Pads
Defibrillator and Pacer Training
Safely discharge your defibrillator/external pacer directly into the CS1201 for interactive cardiac emergency training.
Defibrillator Discharge
The simulator detects defib discharges of 50J or greater. The DEFIB DSCHG indicator illuminates when defib detection occurs.
Convert
After you activate convert, the waiting rhythm that you pre-select automatically becomes the running rhythm when a defibrillator discharge is detected.
Pacing Capture Current
You can select four pacing capture current levels: 70, 80, 90 and 100 mA.
Paced Beats
When a pacer pulse is detected, paced beats are displayed on your ECG monitor and the PACER PULSE indicator blinks off momentarily.
Battery
Powered by four AA alkaline batteries. Low battery indicator illuminates when battery needs to be replaced. Battery saver feature powers-off the simulator automatically when not in use. Battery life is approximately 15 hours. For further information about the functions of the simulator, you can view the operating instructions: CS1201 Operating Instructions [pdf]
CS1201 Order Numbers
The order number you select depends on the manufacturer of the defibrillator you will be using.
| If the Defib Manufacturer is: | Then select this Order Number: |
|---|---|
| ZOLL | 9851-000 |
| Physio-Control and Mindray | 9851-001 |
| Philips | 9851-008 |
| RDT / Tempus LS | 9851-018 |
| Welch Allyn | 9851-017 |
| MRL | 9851-017 |
| Marquette | 9851-002 |
