Prepare for Real Life

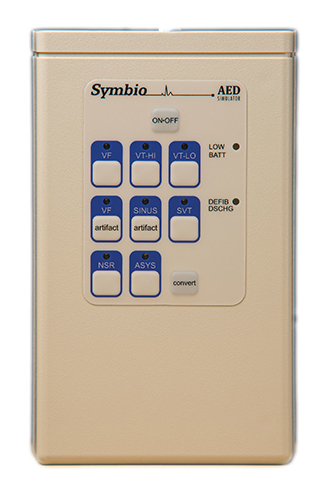

AED Simulator Features

ECG Waveforms

Waveforms for AED Training (8)

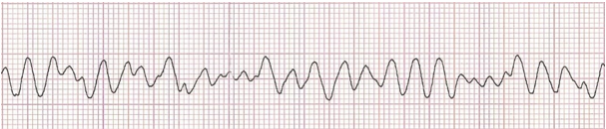

  • Ventricular Fibrillation
  • Ventricular Fibrillation with artifact
  • Ventricular Tachycardia - fast, wide QRS
  • Ventricular Tachycardia - slow, wide QRS
  • Supraventricular Tachycardia (paroxysmal)
  • Normal Sinus Rhythm
  • Sinus Rhythm with artifact
  • Asystole

ECG Connections

Pads only

AED Training

Safely discharge your AED directly into the AED simulator for interactive cardiac emergency training.

Defibrillator Discharge

The simulator detects defib discharges of 50J or greater. The DEFIB DSCHG indicator illuminates when defib detection occurs.


After you activate convert, the waiting rhythm that you pre-select automatically becomes the running rhythm when a defibrillator discharge is detected.


Powered by one 9V alkaline battery. Low battery indicator illuminates when battery needs to be replaced. Battery saver feature powers-off the simulator automatically when not in use. Battery life is approximately 20 hours.

For further information about the function of the simulator, you can view the operating instructions: AED Simulator Operating Instructions [pdf]

AED Simulator Order Numbers

The order number you select depends on the manufacturer of the defibrillator you will be using.

If the Defib Manufacturer is: Then select this Order Number:
ZOLL 9810-000
Physio-Control 9810-001
Philips 9810-008
Welch Allyn 9810-017
